Ürün Özetleri
Unicomp AX9100max Electronics X Ray Machine FOR Flip-Chip BGA (FCBGA) The Unicomp AX9100max X-ray Inspection System is engineered specifically for IGBT module analysis and serves a broad range of industries, including: BGA/CSP/Flip Chip packaging LED & optoelectronic components Fuse & diode ...
Ürün Detayları
Vurgulamak:
Unicomp AX9100max X Ray Machine
,Flip-Chip BGA X Ray Machine
,FCBGA electronics inspection machine
Voltage:
130kV
Movement Control:
Fare & Klavye & Çift joystick
Max. Loading Area:
Φ620[mm]
Max. Inspection Area:
450*600[mm]
Tilt And Rotation:
Sallanır kolu 60°'ye kadar döndürün
Table:
Düzlem dönüşü 360°
Ürün Açıklaması

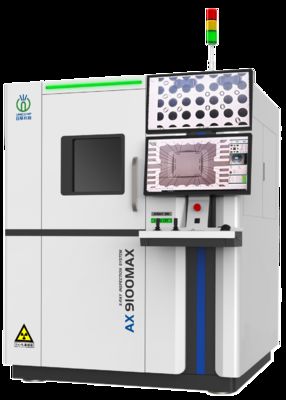

Unicomp AX9100max Electronics X Ray Machine FOR Flip-Chip BGA (FCBGA)
The Unicomp AX9100max X-ray Inspection System is engineered specifically for IGBT module analysis and serves a broad range of industries, including:
- BGA/CSP/Flip Chip packaging
- LED & optoelectronic components
- Fuse & diode manufacturing
- PCB & semiconductor assembly
- Battery production
- Small metal castings
- Electronic connector modules & cables
- Photovoltaic (PV) cell inspection
Application Fields
Application fields of Unicomp AX9100max X-ray Machine
Functions and Features
Functions and features of Unicomp AX9100max X-ray Machine

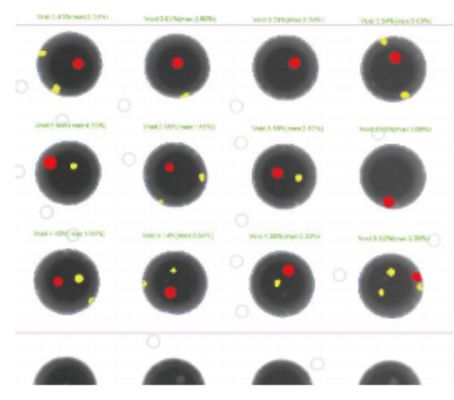

Inspection Image
Sample inspection image from Unicomp AX9100max X-ray Machine
Technical Parameters and Specifications
Technical specifications of Unicomp AX9100max X-ray Machine
Dimensions and Appearance
Dimensions and appearance of Unicomp AX9100max X-ray Machine
Genel Değerlendirme
5 YILDIZ
100%
4 yıldız
0
3 Yıldız
0
2 yıldız
0
1 yıldız
0
Tüm Yorumlar
-
MIt is suitable for detecting various food contaminants. It can identify substances such as quartz and ceramics.
-
Mgood machine
-
SStable product quality , reliable cooperation partner
