Ürün Özetleri
Unicomp UNC160 NDT X-Ray Inspection Equipment For Automotive Hardware Unicomp UNC160 X-Ray for detecting internal defects in brake pads. Mainly used in all kinds of metal castings, hardware products, plastic products, refractory materials, review materials, ceramic body and metal parts welding and ...
Ürün Detayları
Vurgulamak:
Unicomp UNC160 NDT X-ray equipment
,automotive hardware X-ray inspection
,NDT X-ray machine with warranty
Rotation Table:
±360°
Max. Loading Weight:
100kg
Void Measurement:
Birim Alan Başına Gözenekliliği Otomatik Olarak Hesapla
X-Ray Safety:
<1µSv/h
Permission Grading:
Farklı düzeylerde izin yönetimi
Ürün Açıklaması
Unicomp UNC160 NDT X-Ray Inspection Equipment For Automotive Hardware
Unicomp UNC160 X-Ray for detecting internal defects in brake pads. Mainly used in all kinds of metal castings, hardware products, plastic products, refractory materials, review materials, ceramic body and metal parts welding and other products for non-destructive.
Features
- Broad Application Scope: Supports large-scale inspections with high load-bearing capacity.
- Safety Compliance: Adheres to international safety standards, featuring multi-layered protective mechanisms.
- Advanced Image Processing: Rapid high-quality image capture with an intuitive user interface.
- High-Efficiency Testing: CNC-programmable inspection mode enables accelerated operational speeds.
Technical Parameters
| Product Name: | Unicomp UNC160 NDT X-Ray Inspection Equipment For Automotive Hardware |
|---|---|
| Dimensions: | 2024mm*2160mm*2292mm(L*W*H) |
| Machine Weight: | 3200kg |
| Pixel Matrix: | 3072*3072 |
| Pixel Size: | 139μm |
| Tube Voltage: | 160KV |
| Focus Size: | 0.5 |
| Training: | Yes, we warmly welcome you to visit our factory, we will arrange the free training for you. |
| Services: | Help customers analyze product projects and provide detection solutions. Free sample detection test. Provide professional detection solutions. We have skilled jig design services. Provide shipping/delivery information checking service. One year guarantee, all life maintain promise. 24-hour feedback speed by email to others. |
Applications
Primarily used for non-destructive testing of various metal castings, hardware products, plastic components, refractory materials, inspection samples, ceramic bodies, and metal part welding joints, as well as other products.
Support and Services
Our Industrial X Ray Machine product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our trained technicians are available to provide assistance with installation, setup, and calibration of the machine. In addition, we offer ongoing maintenance and repair services to keep the machine running smoothly and to minimize downtime. Our team also provides training and consultation services to help users get the most out of the machine and to ensure safe and effective operation. Contact us for more information about our technical support and services.
FAQ
Q: How about the package? Is it safe during the delivery?
A: All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.
Q: Do you provide the Warranty? How about the after-sales service?
A: 1-year warranty free for spare parts, Whole life technical support. We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.
Q: If we come to your factory if you will provide free training?
A: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.

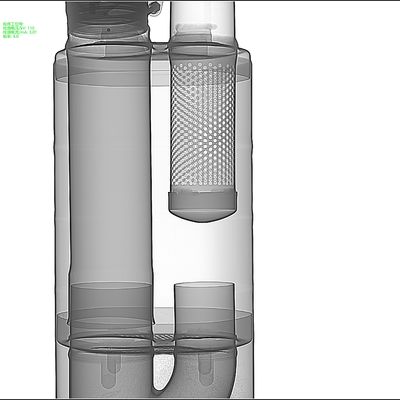

Inspection Images
Inspection pictures are highly visible and can visually show the existence of bubbles, cracks, impurities, loose and other internal defects in the casting products.

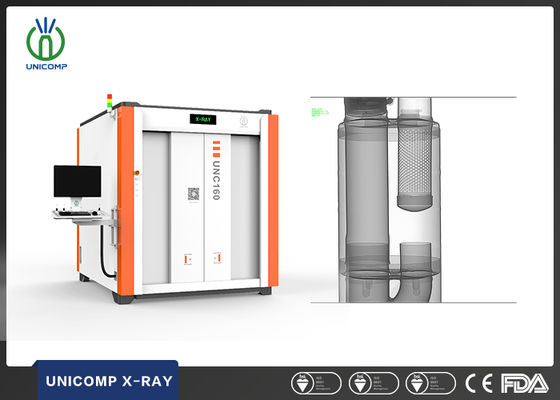

UNC160 Advanced X-Ray NDT Inspection Machine
Machine Footprint
Genel Değerlendirme
5 YILDIZ
100%
4 yıldız
0
3 Yıldız
0
2 yıldız
0
1 yıldız
0
Tüm Yorumlar
-
Mgood machine
-
Pgood product
-
SStable product quality , reliable cooperation partner
