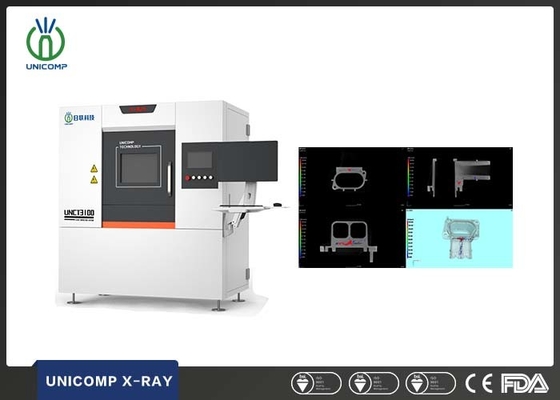

160KV 3D Computed Tomography X-Ray Machine Unicomp UNCT3100 For Automotive Casting Parts Non-Destructive Testing

160KV 3D Computed Tomography X-Ray Machine Unicomp UNCT3100 For Automotive Casting Parts Non-Destructive Testing
160KV 3D Computed Tomography X-Ray Machine Unicomp UNCT3100 For Automotive Casting Parts Non-Destructive Testing

Büyük resim :  160KV 3D Computed Tomography X-Ray Machine Unicomp UNCT3100 For Automotive Casting Parts Non-Destructive Testing

Ürün ayrıntıları:
Menşe yeri: Çin
Marka adı: UNICOMP
Sertifika: CE
Model numarası: UNCT3100
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 takım
Fiyat: Can Negotiate
Ambalaj bilgileri: Ahşap Kasa, Su Geçirmez, Çarpışma Önleyici
Teslim süresi: 10 GÜN
Ödeme koşulları: T/T, L/C
Yetenek temini: Ayda 10 SET
Detaylı ürün tanımı
ayak izi: 1600*1040*1830mm Güç kaynağı: 380AC/50Hz
Dedektör: Amorf Silikon Işıltılı miktar: <1μSv/saat
Voltaj: 160 kv Güç tüketimi: 9 kw
Etkili tespit alanı: 427*427[mm] Maksimum algılama aralığı: φ500*500[mm]
Vurgulamak:

160KV Bilgisayarlı Tomografi X-Ray Makinesi

,

Otomotiv döküm parçaları X-ışını makinesi

,

3 boyutlu bilgisayarlı tomografi röntgen makinesi

160KV 3D computed tomography X-ray machine Unicomp UNCT3100 for automotive casting parts non-destructive testing

Product Description:


The UNCT3100 is one compact industrial CT inspection system that offers high precision and can be utilized across various industries to meet their specific inspection requirements. It is primarily employed for small metal castings, non-ferrous metals, lithium battery cells, chips, electronic components, rock samples, cores, soils, fossils, composite materials, biological samples and other detection purposes.

Features:

  • Functions: DR And CT dual imaging detection function; 3D scanning, data reconstruction and analysis.
  • Operation: User-friendly design of the control system, easy to operate, after a short training can be mastered.
  • High cost-effective: Specially for small product inspection, highly integrated design, complete functions,compact structure.
  • Safety: High level protection, radiation dose far lower than the national standard; multiple security measures.

Technical Parameters:

Product Name: 160KV 3D computed tomography X-ray machine Unicomp UNCT3100 for automotive casting parts non-destructive testing
Dimensions: 1600mm*1040mm*1830mm(L*W*H)
Machine Weight: 2000kg
Pixel Matrix: 3072*3072
Pixel Size: 139μm
Voltage: 160kV
X-ray tube type
Split tube
Training: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.
Services: Help customers analyze product projects and provide detection solutions. Free sample detection test. Provide professional detection solutions. We have skilled jig design services. Provide shipping/delivery information checking service. One year guarantee, all life maintain promise. 24-hour feedback speed by email to others.





Applications:

The Industrial X Ray Machine product can be used across a variety of industries and applications. Here are some of the occasions and scenarios where the product can be used:



  • Defect Detection: Industrial CT scanning technology precisely pinpoints internal imperfections such as cracks, voids, and inclusions, all without compromising the integrity of the sample, thereby safeguarding product quality standards.
  • Wall Thickness Analysis: Accurately quantifies variations in wall thickness and identifies gaps, empowering the fine-tuning of intricate components for optimal performance.
  • CAD Comparison: Validates the accuracy of CAD designs by juxtaposing them against the actual geometric configurations of parts, revealing discrepancies and paving the way for design enhancements.
  • Metrology/Coordinate Measuring: Offers exceptional dimensional accuracy in measurements, augmenting traditional CMMs for a more comprehensive approach to quality assurance.
  • Fiber Composite Analysis: Detects defects like delamination, porosity, and resin cracks within composite materials, bolstering their reliability and longevity.
  • Visualization of Transfer Phenomena: Enables the clear depiction of fluid dynamics, heat distribution, and other transfer processes within materials and structures, supporting advanced design optimization.
  • Structural Mechanics Simulation Integration: When paired with simulation software, it forecasts stress levels, deformations, and failure scenarios, guiding the creation of stronger yet lighter designs.
  • Reverse Engineering Solutions: Transforms existing physical parts into highly accurate CAD models, streamlining replication efforts, redesign initiatives, and reverse-engineering projects.

Support and Services:

Our Industrial X Ray Machine product comes with comprehensive technical support and services to ensure optimal performance and reliability. Our trained technicians are available to provide assistance with installation, setup, and calibration of the machine. In addition, we offer ongoing maintenance and repair services to keep the machine running smoothly and to minimize downtime. Our team also provides training and consultation services to help users get the most out of the machine and to ensure safe and effective operation. Contact us for more information about our technical support and services.

FAQ:

Q: How about the package? Is it safe during the delivery?

A: All X-ray inspection machine is packed with standard wooden solid carton. It is safe when shipping.



Q: Do you provide the Warranty? How about the after-sales service?

A: 1-year warranty free for spare parts, Whole life technical support.

We have a professional after-sales team, if any questions, assistant videos are also provided in the after-sale service.



Q: If we come to your factory if you will provide free training?

A: Yes, we warmly welcome you to visit our factory, we will arrange the free training for you.

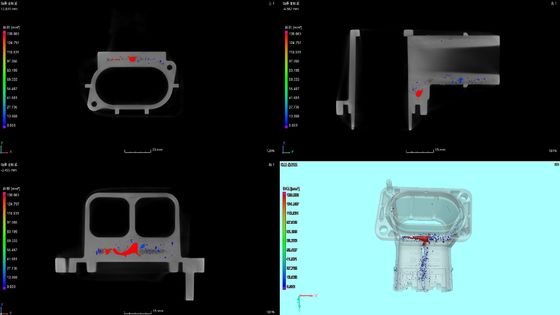

Inspection Images:

160KV 3D Computed Tomography X-Ray Machine Unicomp UNCT3100 For Automotive Casting Parts Non-Destructive Testing 0
