Ürün ayrıntıları:
Ödeme & teslimat koşulları:
|
Adı: | X-ray Muayene Makinesi | Röntgen Kapsamı: | 48mm x 54mm |
---|---|---|---|
ENDÜSTRİ: | Elektronik endüstrisi | Eğik Açı Görünümleri: | 360° döner fikstür (Opsiyonel) |
Röntgen Sızıntısı: | < 1uSv/h | Başvurular: | BGA, CSP, LED, Flip Chip, Yarıiletken |
Vurgulamak: | bga x ray kontrol sistemi,bga x ray makinesi |

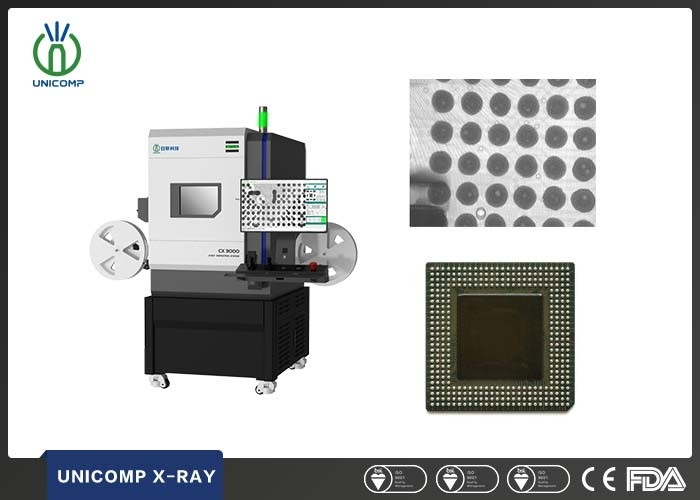

BGA X-Ray Inspection Machine for Electronic and electrical components (BGA Elektronik ve elektrikli bileşenler için X-Ray Denetim Makinesi)
Ürün | Tanımlama | Özellikleri |
Sistem parametreleri | Boyut | 750 ((L) x 570 ((W) x 890 ((H) mm |
Ağırlık | 300 kg | |
Güç | 220AC/50Hz | |
Güç tüketimi | 0.5kW | |
Röntgen tüpü | Türü | Kapalı |
Max.Voltaj | 100kV | |
Maks. Güç | 200μA | |
Nokta Boyutu | 5 μm | |
Detektör | Güçlendirici | FPD |
Röntgen Kapsamı | 48 mm x 54 mm | |
Karar | 208Lp/cm | |
Çalışma istasyonu | Maks.Yükleme Boyutu | 200 mm x 200 mm |
En fazla.Denetim alanı | 200 mm x 200 mm | |
Eğimli açı görüşleri | 360° döner sabitleme (Farklı) | |
X-ışını sızıntıları | <1μSv/saat |
Hizmetimiz
1- Sizin sorunuza 12 saat içinde cevap verilecektir.
2.Original Manufacture to customers, with competitive price. Müşterilere rekabetçi fiyatlı orijinal üretim.
3Bir yıllık garanti, ücretsiz eğitim ve ömür boyu teknoloji desteği sağlıyoruz.
4.We can arrange the shipment by air, DHL,Fedex,UPS, and by Sea,etc for you, and will give you the tracking NO. after shipment..We can arrange the shipment by air,DHL,Fedex,UPS,and by Sea,etc for you, and will give you the tracking NO. ve size gönderimden sonra izleme numarasını vereceğiz.
5.Well-trained and Professional after-sales service team to support you. - İyi eğitimli ve profesyonel satış sonrası servis ekibi size destek olacak.
6Bu size makineyi adım adım nasıl kullanacağınızı gösterecek.
7Mallar sadece ödeme aldıktan sonra gönderilir.
Full Automatic BGA Testing Procedures
1A simple mouse click programming without the need for operator intervention on the component can detects each BGA automatically. A simple mouse click programming without the need for operator intervention on the component can detects each BGA automatically. Bir bileşen üzerinde operatör müdahalesine gerek kalmadan basit bir fare tıklaması programlaması, her BGA'yı otomatik olarak tespit edebilir.
2. Automatic BGA test, accurately check the bridge, Welding, cold welding and void ratio of BGA. BGA'nın otomatik BGA testi, köprüyü, kaynak, soğuk kaynak ve boşluk oranını doğru bir şekilde kontrol edin.
3. Automatic BGA test repeatable test results in order to process control (BGA testi tekrarlanabilir test sonuçları işlem kontrolü için)
4. The test results will be displayed on the screen and can be output to Excel to facilitate review and archiving (Sınav sonuçları ekranda görüntülenecek ve gözden geçirilmesini ve arşivlenmesini kolaylaştırmak için Excel & apos; e aktarılabilir)
NC Programming
1. A simple mouse clicks operation write test procedures (Bir fare basması ile yazma testi prosedürleri)
2.The stage can be X, Y director positioning; X-ray tube and detector Z positioning. - Bu bir pozisyondur.
3.Software setting voltage and current (Soyut ayarlama voltajı ve akımı)
4Görüntü ayarları: parlaklık, kontrast, otomatik kazanç ve pozlama
5. Kullanıcı programı ayarlayabilir.
6.Anti-collision system can meet the maximum tilt and observe objects.Anti-çarpışma sistemi maksimum eğimle karşılaşabilir ve nesneleri gözlemleyebilir.
Denetim Resimleri:
